Product Series – RF Connection

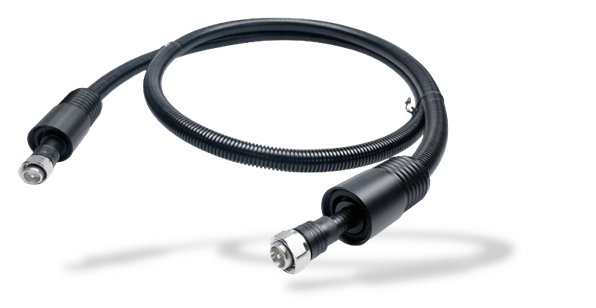

Various RF Jumper/Tail products cover the latest need in all 4G/5G macro/small cell deployment scenarios, certified and field proved.
Supported Connectors:
NEX10 male/female/male-angled
4.3-10 male/female/male-angled
DIN (7/16″) male/female/male-angled
2.2-5 male/female/male-angled (upcoming)
Supported RF Cables:
Low Loss 1/4″, 3/8″, 1/2″
Flexible 1/4″, 3/8″, 1/2″
Optional Environmental Protections:
Integrated Birdproofing Shell
Secondary Waterproof Boots
| Impedance | 50Ω±2 |
| Insulation Resistance | ≥10000MΩ |
| Withstanding Voltage | 2.5kV |
| Frequency Range | DC-6.0GHz |
| Operating Voltage | 1.4kV |
| 3rd PIM(2*43dBm） | ≤-160dBc |
| Waterproofing | IP68（24h，20℃，1m） |
| Operating Temperature | -45°C to +85°C |
| Salt spray test | IEC 60068-2-52(14 days alternating salt spray test) |
| Other standards | RoHS, ISO 9001:2015 |
